Industrial Vibrator 184 |
 |
|

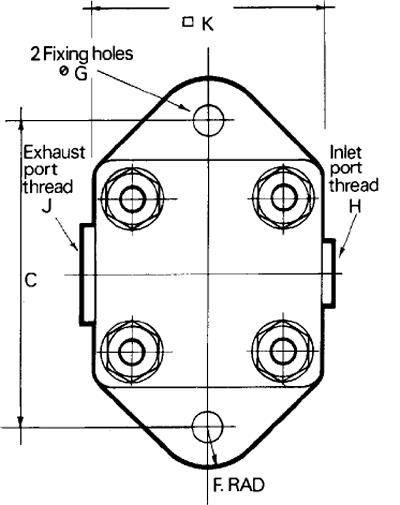

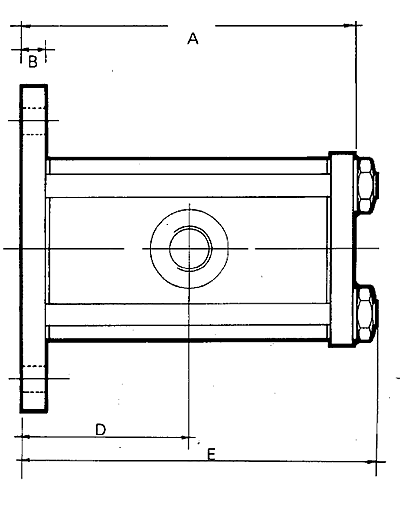

Dimensions (cm) A - 200B - 12C - 140D - 100E - 210F - 20G - 18H - G1/4J - G3/8K - 98Weight 6.4kg.
Performance 24 Frequency Hz 2 bar37 Frequency Hz 6 bar5.1 Amplitude mm 2 bar9.2 Amplitude mm 6 bar1225 Force N 6 barAir consumption 180 dm3/min at 4 bar
Pulse Power vibrators can be used in a wide variety of applications in the engineering and process industries. some applications are; fatigue testing of components or structure, agitation of solids or liquids, anti-bridging of hoppers, compacting and as drive units for; Linear and Bowl feeders, sieves and screens, vibrating tables and mixing units.
Ask for a recommendation to suit your application. |
| |
