Industrial Vibrator 183

  stockImages/Image122.jpg stockImages/Image2122.gif stockImages/Image3122.gif

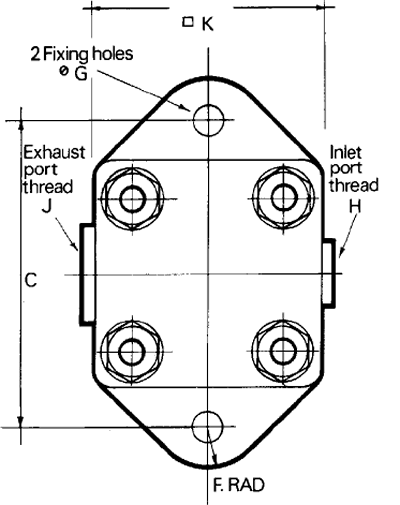

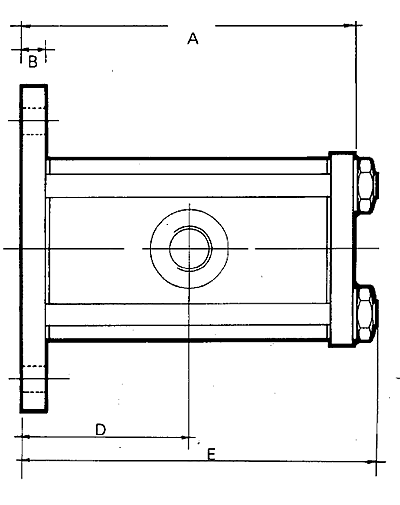

Dimensions (cm)
  • A - 146
  • B - 12
  • C - 140
  • D - 73
  • E - 160
  • F - 20
  • G - 18
  • H - G1/4
  • J - G3/8
  • K - 98
  • Weight 5.5kg.


  • Performance
  • 33 Frequency Hz 2 bar
  • 50 Frequency Hz 6 bar
  • 3.2 Amplitude mm 2 bar
  • 5.1 Amplitude mm 6 bar
  • 785 Force N 6 bar
  • Air consumption 150 dm3/min at 4 bar


  • Pulse Power vibrators can be used in a wide variety of applications in the engineering and process industries. some applications are; fatigue testing of components or structure, agitation of solids or liquids, anti-bridging of hoppers, compacting and as drive units for; Linear and Bowl feeders, sieves and screens, vibrating tables and mixing units.

    Ask for a recommendation to suit your application.
