Industrial Vibrator 182

  stockImages/Image121.jpg stockImages/Image2121.gif stockImages/Image3121.gif

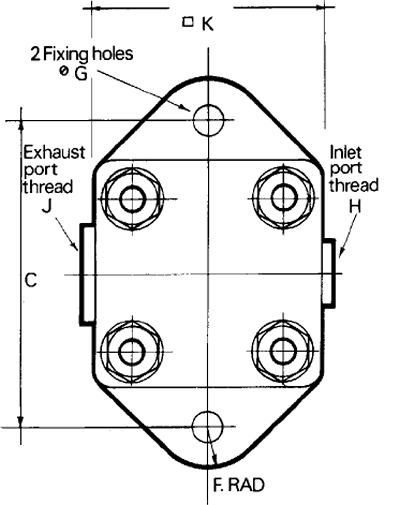

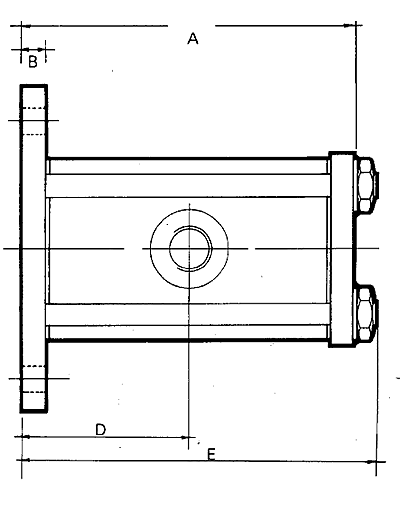

Dimensions (cm)
  • A - 105
  • B - 12
  • C - 140
  • D - 52
  • E - 115
  • F - 20
  • G - 18
  • H - G1/4
  • J - G3/8
  • K - 98
  • Weight 4.4kg.


  • Performance
  • 46 Frequency Hz 2 bar
  • 73 Frequency Hz 6 bar
  • 1.9 Amplitude mm 2 bar
  • 3.1 Amplitude mm 6 bar
  • 490 Force N 6 bar
  • Air consumption 140 dm3/min at 4 bar


  • Pulse Power vibrators can be used in a wide variety of applications in the engineering and process industries. some applications are; fatigue testing of components or structure, agitation of solids or liquids, anti-bridging of hoppers, compacting and as drive units for; Linear and Bowl feeders, sieves and screens, vibrating tables and mixing units.

    Ask for a recommendation to suit your application.
