Industrial Vibrator 143 |
 |
|

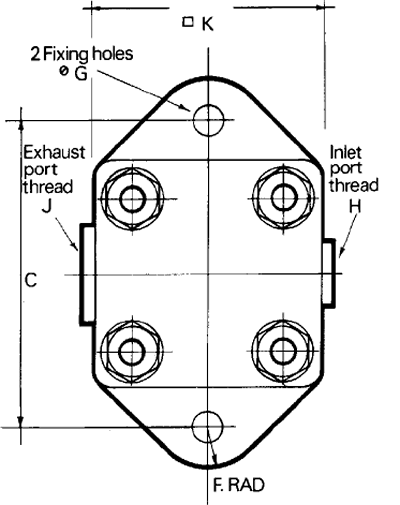

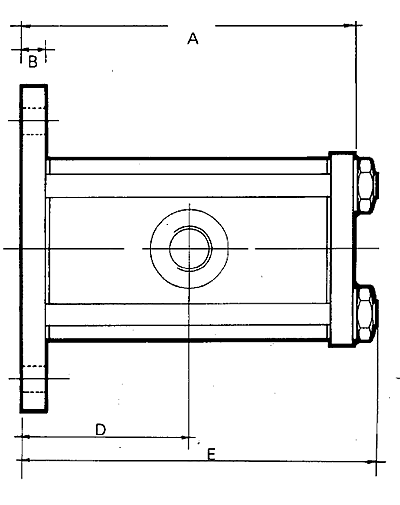

Dimensions (cm) A - 142B - 10C - 110D - 71E - 150F - 14G - 11H - G1/4J - G3/8K - 81Weight 3.6kg.
Performance 33 Frequency Hz 2 bar50 Frequency Hz 6 bar3.8 Amplitude mm 2 bar5.2 Amplitude mm 6 bar490 Force N 6 barAir consumption 110 dm3/min at 4 bar
Pulse Power vibrators can be used in a wide variety of applications in the engineering and process industries. some applications are; fatigue testing of components or structure, agitation of solids or liquids, anti-bridging of hoppers, compacting and as drive units for; Linear and Bowl feeders, sieves and screens, vibrating tables and mixing units.
Ask for a recommendation to suit your application. |
| |
