| Industrial Vibrator 142 |
 |
|

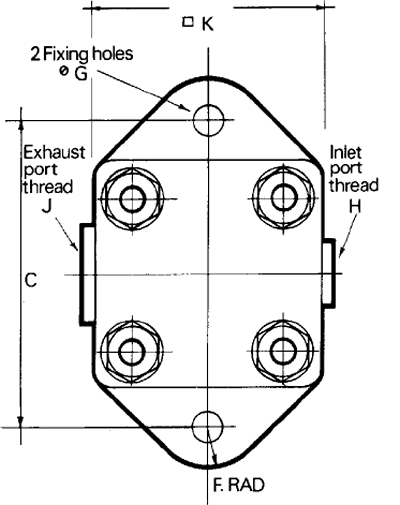

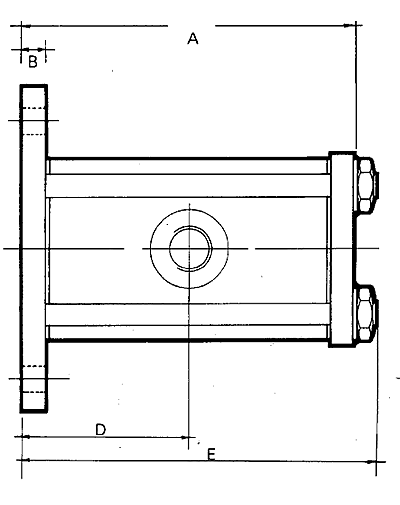

Dimensions (cm)
A - 101B - 10C - 110D - 51E - 110F - 14G - 11H - G1/4J - G3/8K - 81Weight 2.8kg.
Performance
46 Frequency Hz 2 bar73 Frequency Hz 6 bar1.9 Amplitude mm 2 bar3.1 Amplitude mm 6 bar343 Force N 6 barAir consumption 80 dm3/min at 4 bar
Pulse Power vibrators can be used in a wide variety of applications in the engineering and process industries. some applications are; fatigue testing of components or structure, agitation of solids or liquids, anti-bridging of hoppers, compacting and as drive units for; Linear and Bowl feeders, sieves and screens, vibrating tables and mixing units.
Ask for a recommendation to suit your application. |
| |
)
)
)
