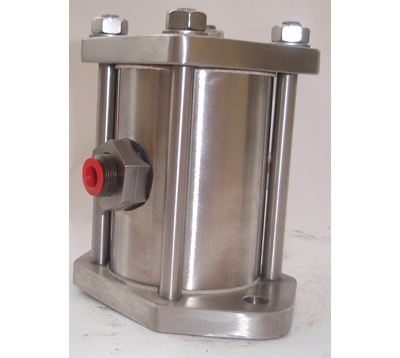

Industrial Vibrator 102

  stockImages/Image118.jpg stockImages/Image2118.jpg stockImages/Image3118.gif

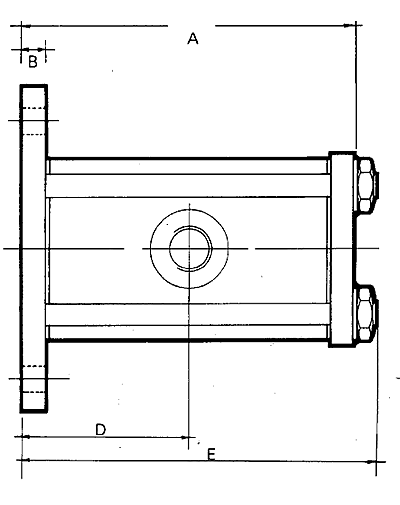

Dimensions (cm)
  • A - 100
  • B - 10
  • C - 85
  • D - 50
  • E - 110
  • F - 13
  • G - 9
  • H - G1/8
  • J - G1/4
  • K - 70
  • Weight 1.9kg.


  • Performance
  • 46 Frequency Hz 2 bar
  • 76 Frequency Hz 6 bar
  • 2.2 Amplitude mm 2 bar
  • 3.2 Amplitude mm 6 bar
  • 157 Force N 6 bar
  • Air consumption 50 dm3/min at 4 bar


  • Pulse Power vibrators can be used in a wide variety of applications in the engineering and process industries. some applications are; fatigue testing of components or structure, agitation of solids or liquids, anti-bridging of hoppers, compacting and as drive units for; Linear and Bowl feeders, sieves and screens, vibrating tables and mixing units.

    Ask for a recommendation to suit your application.
