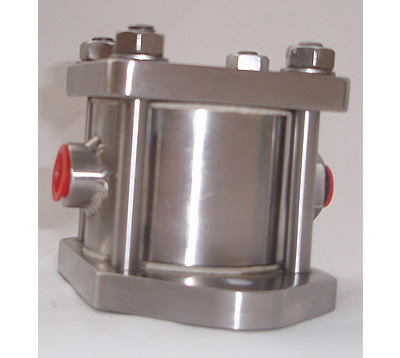

| Industrial Vibrator 101 |
 |
|

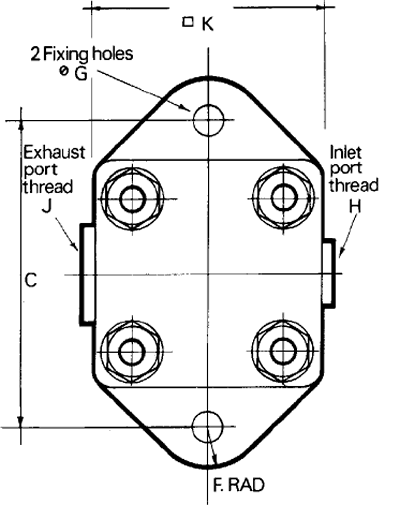

Dimensions (cm)
A - 65B - 10C - 85D - 32E - 75F - 13G - 9H - G1/8J - G1/4K - 70Weight 1.5kg.
Performance
74 Frequency Hz 2 bar114 Frequency Hz 6 bar0.9 Amplitude mm 2 bar1.3 Amplitude mm 6 bar88 Force N 6 barAir consumption 40 dm3/min at 4 bar
Pulse Power vibrators can be used in a wide variety of applications in the engineering and process industries. some applications are; fatigue testing of components or structure, agitation of solids or liquids, anti-bridging of hoppers, compacting and as drive units for; Linear and Bowl feeders, sieves and screens, vibrating tables and mixing units.
Ask for a recommendation to suit your application. |
| |
)
)
)
