Industrial Vibrator 077

  stockImages/Image116.jpg stockImages/Image2116.gif stockImages/Image3116.gif

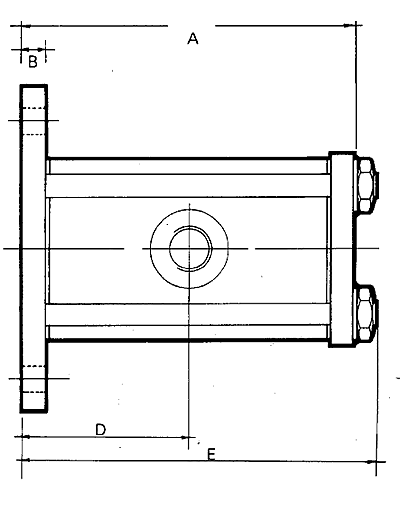

Dimensions (cm)
  • A - 42
  • B - 5
  • C - 50
  • D - 22
  • E - 50
  • F - 8
  • G - 7
  • H - G1/8
  • J - G1/8
  • K - 42
  • Weight 0.4kg.


  • Performance
  • 105 Frequency Hz 2 bar
  • 150 Frequency Hz 6 bar
  • 0.7 Amplitude mm 2 bar
  • 1.15 Amplitude mm 6 bar
  • 39 Force N 6 bar
  • Air consumption 30 dm3/min at 4 bar


  • Pulse Power vibrators can be used in a wide variety of applications in the engineering and process industries. some applications are; fatigue testing of components or structure, agitation of solids or liquids, anti-bridging of hoppers, compacting and as drive units for; Linear and Bowl feeders, sieves and screens, vibrating tables and mixing units.

    Ask for a recommendation to suit your application.
